Acomo 15 mm
| Class | C |
| Aw | 0,60 |
| NRC | 0,75 |
| 125 HZ | 0,11 |
| 250 HZ | 0,31 |
| 500 HZ | 0,73 |
| 1000 HZ | 0,95 |
| 2000 HZ | 0,94 |
| 4000 HZ | 1,06 |
| Brandklasse B conform NEN-EN 13501-1 | |
Acomo Seal Solid
Download our product sheets here:
Acomo Seal Solid
Acomo Seal Solid is available in the standard colors: white, black, anthracite, and light gray. This way, the finish always perfectly matches the look and feel of the space.
Voordelen
- Standard colors: white, black, anthracite, and light gray
- Various thicknesses
- For almost any surface
- Always perfect acoustics
- Excellent insulation values
- Seamless finish
Afmeting
15 mm
20 mm
25 mm
30 mm
35 mm
Acomo 20 mm
| Class | C |
| Aw | 0,75 |
| NRC | 0,85 |
| 125 HZ | 0,18 |
| 250 HZ | 0,49 |
| 500 HZ | 0,92 |
| 1000 HZ | 0,103 |
| 2000 HZ | 1,00 |
| 4000 HZ | 1,08 |
| Brandklasse B conform NEN-EN 13501-1 | |
Acomo 25 mm
| Class | B |
| Aw | 0,80 |
| NRC | 0,90 |
| 125 HZ | 0,17 |
| 250 HZ | 0,52 |
| 500 HZ | 1,00 |
| 1000 HZ | 1,01 |
| 2000 HZ | 0,97 |
| 4000 HZ | 1,07 |
| Brandklasse B conform NEN-EN 13501-1 | |
Acomo 30 mm
| Class | A |
| Aw | 0,95 |
| NRC | 0,95 |
| 125 HZ | 0,24 |
| 250 HZ | 0,67 |
| 500 HZ | 1,06 |
| 1000 HZ | 1,03 |
| 2000 HZ | 1,00 |
| 4000 HZ | 1,03 |
| Brandklasse B conform NEN-EN 13501-1 | |
Acomo 35 mm
| Class | A |
| Aw | 1,00 |
| NRC | 1,00 |
| 125 HZ | 0,29 |
| 250 HZ | 0,73 |
| 500 HZ | 1,09 |
| 1000 HZ | 1,09 |
| 2000 HZ | 0,99 |
| 4000 HZ | 0,96 |
| Brandklasse B conform NEN-EN 13501-1 | |

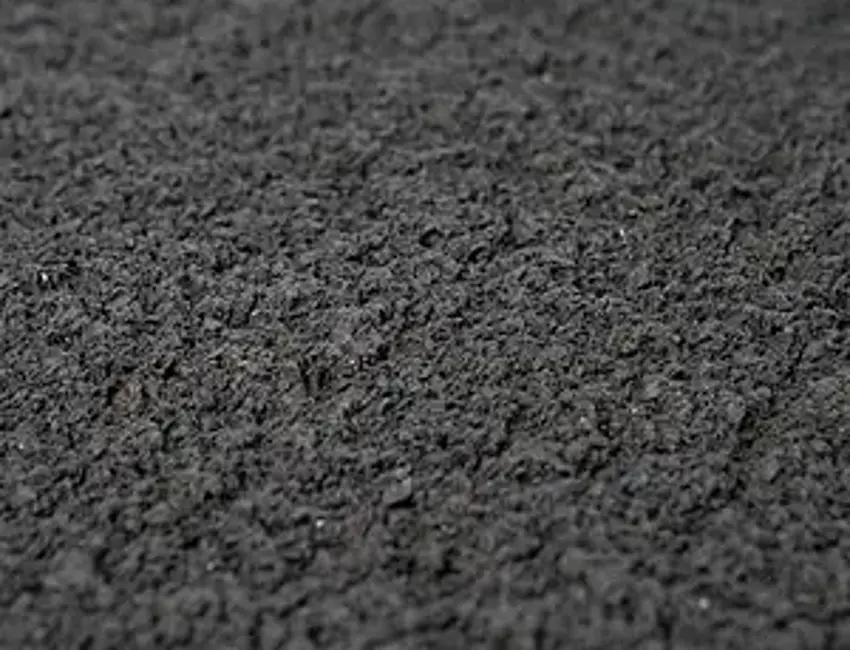

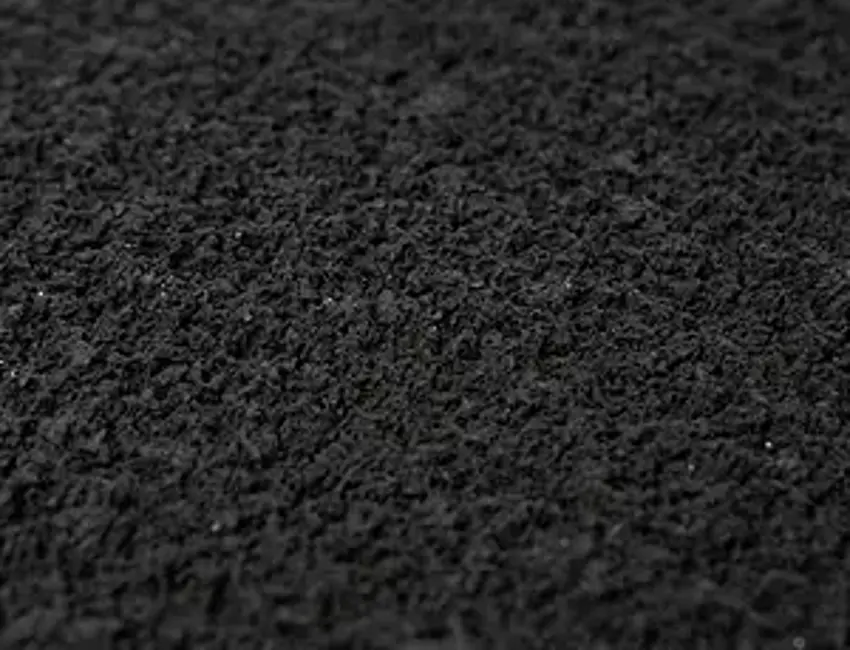

Colors
Our range of standard colors – white, black, anthracite, and light gray. The solid foundation for a perfect acoustic ceiling.
White

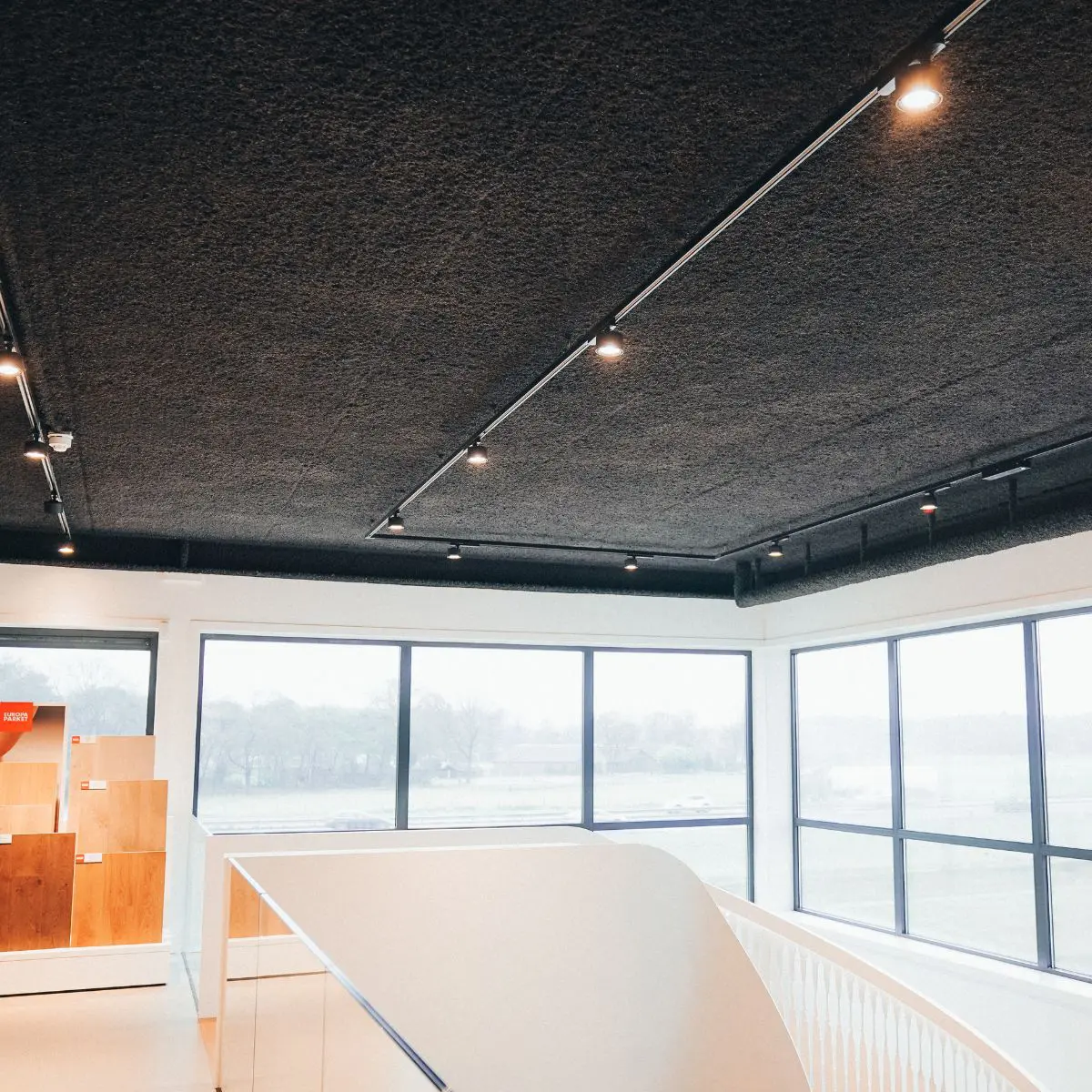

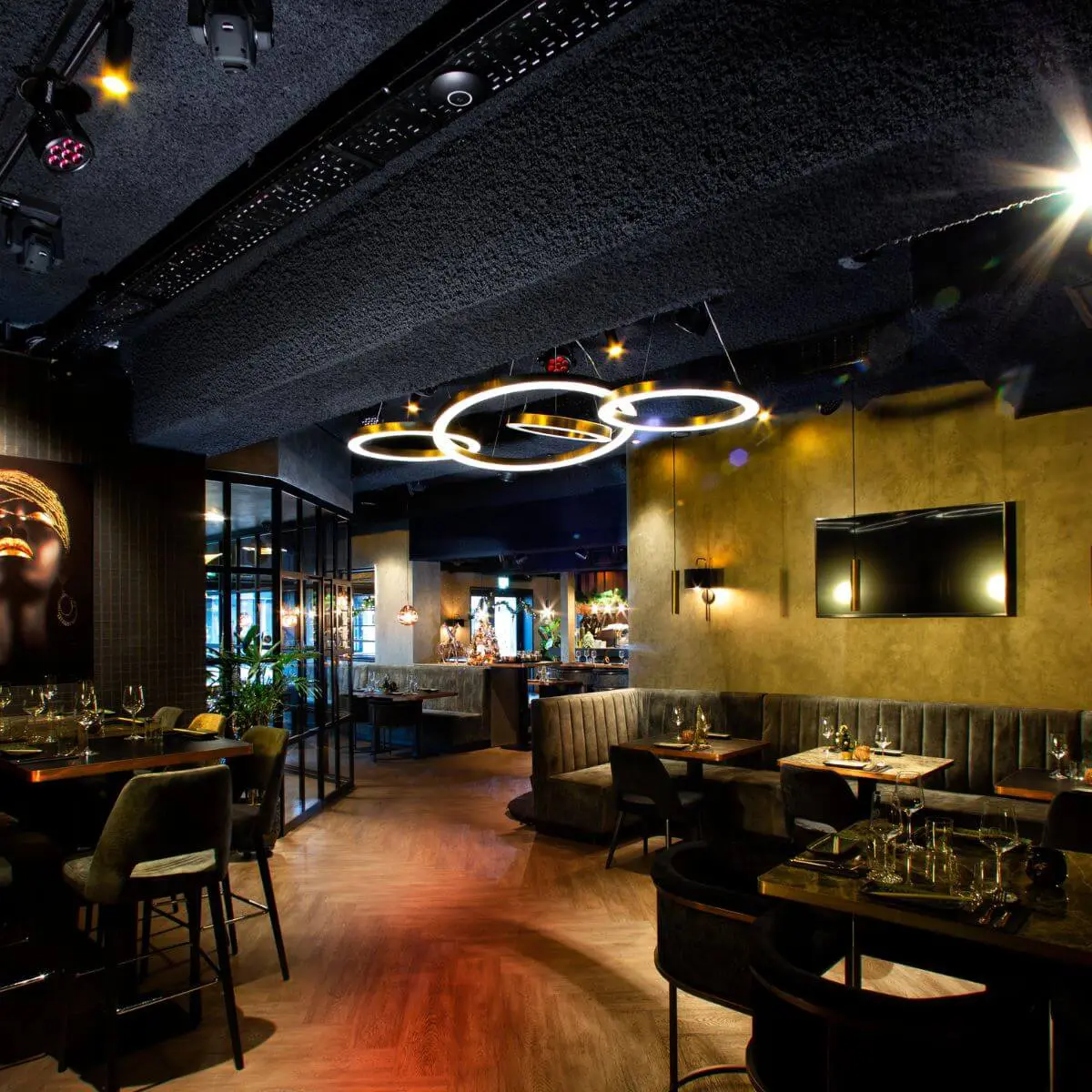

Projects Acomo Seal
Be inspired by our projects and discover the versatility of Acomo Seal.
